cenker's mod - Manual

1. Introduction

cenker's mod is not a game engine. It is a package that has multiple multiplayer mods within it. Users can create and host their own mods using Lua 5.4 scripting. cenker's mod handles networking, physics, rendering, and input management, allowing you to focus on creating unique experiences.

Key Features

• Multiplayer Support: Built-in Steam networking with host-client architecture
• Lua 5.4 Scripting: Write game logic in Lua with full API access
• Entity System: Flexible entity-component architecture
• Network Synchronization: Automatic entity synchronization across clients
• Physics System: 2D physics for collisions and movement (max velocity: 300)
• UI Framework: Dynamic panel and widget creation system
• Audio System: 2D positional audio with effects
• Voice Chat: Integrated voice communication system

Example Mods

The game comes with three example mods that demonstrate different gameplay styles:

• Football: A competitive team-based sports game
• Hook Up: A physics-based platformer with grappling hook mechanics and fishing minigame
• Campfire Survivors: A cooperative survival game with wave-based enemies

2. Getting Started

Mod Structure

Each mod follows this directory structure:

mods/YourModName/
├── general/
│   ├── scripts/          # Lua entity scripts
│   │   ├── user.lua     # Player entity (required)
│   │   ├── world.lua    # World singleton (recommended)
│   │   └── ...          # Your custom entities
│   ├── images/          # PNG textures
│   └── sounds/          # OGG audio files
├── maps/                # Tilemap definitions
└── cenkers_mod_stub.lua # API type definitions (optional)

Your First Entity

Create a simple entity in general/scripts/my_entity.lua:

-- Set entity properties at the top (MUST be primitive values)
network_mode = 2  -- DYNAMIC: synced continuously
z_index = 5       -- Rendering order (must be between -999 and 999)

-- Called every frame
function _process(delta, inputs)
    -- Your game logic here
    if IS_LOCAL then
        -- Only execute on local player's machine
    end

    if IS_HOST then
        -- Only execute on host machine
    end

    return inputs
end

-- Initialize entity
set_image({
    parent_name = name,
    name = "my_sprite",
    image_path = "my_texture",  -- loads my_texture.png
    scale = Vector2(32, 32)
})

set_collision({
    parent_name = name,
    shape = "circle",
    size = 16
})

3. Game Architecture

3.1 Entities

Entities are the fundamental building blocks of your game. Each entity is a Lua script that defines behavior and properties. The game automatically creates a RigidBody2D node for each entity.

Entity Properties

Example: Football Player

-- From Football mod: user.lua
bounce = 0.8
friction = 0.1
lock_rotation = true

add_tag(name, "user")

function _process(delta, inputs)
    -- Handle player input
    if inputs["key_7"] then
        hit_value = math.min(hit_value + 100*delta, 100)
    end
    return inputs
end

3.2 Singletons

Singletons are special entities that exist once per game and manage global state. They are prefixed with - and short names are recommended for network efficiency.

-- Define as singleton at the top of your script
singleton_name = "-game_manager"

-- Singletons are accessible from any entity
run_function("-game_manager", "start_game", {})

3.3 Network Modes

Network synchronization is controlled by the network_mode variable:

Network Functions

Network functions use suffixes to control execution:

function my_function_HOST(sender_id, other_params)
    -- sender_id is the Steam ID of who called this
end

Network Function Examples

Example 1: Simple Weapon System

-- BAD: Client directly modifies gameplay
function fire_weapon()
    if IS_LOCAL then
        spawn_entity_local({t = "bullet"})  -- Client can cheat!
    end
end

-- GOOD: Client requests, host validates
function fire_weapon()
    if IS_LOCAL then
        run_network_function(name, "request_fire_weapon_HOST", {})
    end
end

function request_fire_weapon_HOST(sender_id)
    if sender_id ~= name then return end  -- Verify sender

    -- Check cooldown using Unix time (seconds)

    local current_time = get_os_time()  -- Returns Unix timestamp in seconds
    if current_time - last_fire_time < 1 then return end  -- 1 second cooldown

    last_fire_time = current_time

    -- Spawn on host
    spawn_entity_host({
        t = "bullet",
        p = get_value("", sender_id, "position"),
        owner = sender_id
    })
end

Example 2: Hook System (from Hook Up Mod)

-- From Hook Up mod: user.lua
-- Client requests to fire hook
function fire_hook_to_mouse()
    if IS_LOCAL then
        run_network_function(name, "request_fire_hook_HOST", {hook_power})
    end
end

-- Host validates and processes the request
function request_fire_hook_HOST(sender_id, requested_power)
    if sender_id ~= name then return end  -- Validate sender

    if hook_state ~= "READY" then return end  -- Validate state

    -- Clamp power to prevent cheating
    local clamped_power = math.max(hook_power_min,
                                   math.min(requested_power, hook_power_max))

    -- Calculate and apply velocity
    local direction = (mouse_position - position).normalized()
    local velocity = direction * clamped_power

    unfreeze_entity(hook_entity_name, true)
    change_instantly({
        entity_name = hook_entity_name,
        linear_velocity = velocity,
        position = position
    })

    -- Sync state to all clients
    run_network_function(sender_id, "set_hook_state_ALL", {"FIRING"})
end

-- All clients update their hook state
function set_hook_state_ALL(sender_id, new_state)
    hook_state = new_state

    if new_state == "FIRING" then
        run_function(hook_entity_name, "activate_hook", {})
        if IS_LOCAL then
            set_camera_target(hook_entity_name)
        end
    end
end

4. Lua API Reference

4.1 Global Variables

These variables are automatically available in every entity script:

-- Reading: Direct access is faster
local pos = position  -- Instead of get_value("", name, "position")
local vel = linear_velocity  -- Instead of get_value("", name, "linear_velocity")

-- Writing: Must use set_value() for game to detect changes
set_value("", name, "position", Vector2(100, 200))
set_value("", name, "linear_velocity", Vector2(50, 0))

4.2 Callback Functions

Define these functions in your entity to receive events:

_process(delta, inputs)

Called every frame. Return modified inputs dictionary or nil.

function _process(delta, inputs)
    -- delta: time since last frame in seconds
    -- inputs: table with the following keys:
    --   key_1 to key_13: boolean (various buttons, see input table below)
    --   stick_1: Vector2  -- left stick / WASD (movement)
    --   stick_2: Vector2  -- right stick / mouse position in world space

    if IS_LOCAL then
        -- Check input
        if inputs["key_6"] then  -- Interact key (E / Square / Y)
            -- Perform action
        end

        -- Movement using stick_1
        local movement = inputs["stick_1"]
        if movement.x ~= 0 or movement.y ~= 0 then
            -- Apply movement
        end
    end

    return inputs  -- or nil to leave unchanged
end

Input System and Gamepad Support

The game comes with full gamepad integration and virtual mouse support. Players can use keyboard/mouse, Nintendo Switch controllers, Xbox controllers, or PlayStation controllers. The input mappings are automatically handled by the game.

_on_user_initialized(steam_id, nickname)

Called when a user finishes joining and is ready to receive network calls.

function _on_user_initialized(steam_id, nickname)
    if IS_HOST then
        if steam_id == name then
            -- This user just finished initializing
            local player_color = generate_random_color()
            run_network_function(name, "create_user_ALL", {player_color})
        else
            -- Send existing data to new player
            run_network_function(name, "sync_state_CLIENT", {current_state}, steam_id)
        end
    end
end

_on_user_disconnected(steam_id, nickname)

Called when a user leaves the game.

function _on_user_disconnected(steam_id, nickname)
    if steam_id == name then
        -- Clean up this user's entities
        destroy("", hook_entity_name)
        destroy_line(hook_line_name)
    end
end

add_command(entity_name, function_name, command_name, description, chat_executable)

Registers a command to the centralized command system. Commands are reset when the map is unloaded. Note: Do not include the / prefix in the command_name; it is added automatically for chat.

• entity_name: The name of the singleton or entity (e.g., "-cmd").
• function_name: The function inside that entity to execute.
• command_name: The name of the command without prefix (e.g., "rules").
• description: A brief description (shown in /help). If your command has parameters, describe them here (e.g. "Teleport to [x] [y]").
• chat_executable: Boolean. If true, it can be executed via chat with a / prefix.

-- Typical usage (at top of script)
add_command("-cmd", "show_rules", "rules", "Shows Finding Liar game rules", true)
-- Users can now type '/rules' in chat or 'rules' in the console.

-- Callback function example:
function show_rules(sender_id, arg1, arg2)
    -- arg1, arg2 etc. are strings passed from the chat/console
    add_to_chat("Rules: Be nice!", false)
end

_on_chat_message_received(sender_id, nickname, message)

Called when a chat message is received. Supports chaining between multiple mods.

function _on_chat_message_received(sender_id, nickname, message)
    -- Example 1: Suppress messages from a specific user
    if sender_id == "76561198..." then
        return ""
    end

    -- Example 2: Profanity Filter (Censorship)
    -- Replaces "your mom" with "***" (case-insensitive)
    local censored_message = message:gsub("[Yy][Oo][Uu][Rr] [Mm][Oo][Mm]", "***")

    -- Example 3: Emoji Replacement
    -- Replaces ":)" with a smiling face symbol
    local final_message = censored_message:gsub(":%s?%)", "😊")

    -- Example 4: Add a custom prefix
    return "[GLOBAL] " .. final_message
end

_on_gamepad_connection_changed(has_gamepad)

Called when gamepad is connected/disconnected or display style changes.

function _on_gamepad_connection_changed(has_gamepad)
    if IS_LOCAL then
        -- Refresh button prompts
        set_label({
            name = "tutorial_label",
            text = "Press @key_7@ to interact\n@stick_1@ to move"
        })
    end
end

4.3 Entity Management

spawn_entity_local(config)

Spawn an entity locally (client-side only, not synced).

-- Spawn a local particle effect
local particle = spawn_entity_local({
    t = "particle_effect",      -- script name
    p = Vector2(100, 100),      -- position
    r = 0,                      -- rotation in radians
    v = Vector2(0, 0),          -- linear velocity
    a = 0,                      -- angular velocity
    -- Custom properties:
    duration = 2.0,
    color = Color(1, 0, 0, 1)
})

spawn_entity_host(config)

Spawn a network-synchronized entity (Host only).

-- From Campfire Survivors: spawn monsters
if IS_HOST then
    local monster = spawn_entity_host({
        t = "monster",
        p = spawn_position,
        hp = 100,
        damage = 10,
        speed = 20
    })
end

destroy(parent_name, entity_name, notify_network)

Destroy an entity and its children.

-- Destroy a networked entity
if IS_HOST then
    destroy("", bullet_name, true)  -- Notify clients
end

-- Destroy a local entity
destroy("", effect_name, false)

freeze_entity(entity_name, all)

Freeze an entity's physics (stops movement).

-- From Hook Up: freeze hook when attached
freeze_entity(hook_entity_name, true)  -- Sync to all clients

4.4 Network Functions

run_network_function(entity_name, function_name, parameters, steam_id)

Execute a function across the network.

-- Host broadcasts to all clients
if IS_HOST then
    run_network_function("user_steam_id", "update_score_ALL", {new_score})
end

-- Client sends request to host
if IS_LOCAL then
    run_network_function(name, "request_action_HOST", {action_data})
end

-- Host sends to specific client
if IS_HOST then
    run_network_function(name, "show_message_CLIENT",
                        {"Welcome!"}, target_steam_id)
end

Important: User Entity Names Are Steam IDs

In user scripts (user.lua), the name variable contains the player's Steam ID. This is why callbacks like _on_user_initialized, _on_user_disconnected, and _on_user_banned often check if steam_id == name - these callbacks run on ALL user entities, so you need to verify which user the event belongs to.

-- These callbacks run on EVERY user entity
function _on_user_disconnected(steam_id, nickname)
    if steam_id == name then  -- Check if THIS user disconnected
        -- Clean up this user's entities
        destroy("", hook_entity_name)
        stop_timer("shoot_timer"..name)
    end
end

function _on_user_initialized(steam_id, nickname)
    if steam_id == name then  -- Check if THIS user just joined
        -- Initialize this user
        run_network_function(name, "setup_player_ALL", {})
    end
end

Targeting User Entities: When calling network functions on user entities, use the player's Steam ID as the entity name:

-- target_steam_id is a specific player's Steam ID
run_network_function(target_steam_id, "change_team_ALL", {team_id})

-- In the user.lua script, 'name' equals the Steam ID
run_network_function(name, "update_health_ALL", {new_health})

4.5 UI System

create_panel(config)

Create a custom UI window/panel.

-- From Hook Up: inventory panel
local panel_name = create_panel({
    name = "_inventory_panel",
    title = "Inventory",
    text = "Your items:",
    resizable = true,
    close = true,
    minimum_size = Vector2(400, 300),
    is_scrollable = true,
    color = Color(0.2, 0.2, 0.2, 0.9)
})

add_button_to_panel(panel_name, config)

Add an interactive button to a panel.

add_button_to_panel("_upgrade_panel", {
    entity_name = name,
    function_name = "select_upgrade",
    text = "Increase Speed (+20%)",
    extra_args = {upgrade_type = "speed", value = 0.2},
    color = Color(0.3, 0.5, 0.7)
})

set_label(config)

Create or update a text label.

-- From Campfire Survivors: health display
if IS_LOCAL then
    set_label({
        name = "_health_label",
        text = string.format("Health: %d/%d", current_health, max_health),
        position = Vector2(20, 20),
        size = Vector2(200, 20),
        font_size = 16,
        font_color = Color(1, 1, 1, 1),
        outline_size = 2,
        outline_color = Color(0, 0, 0, 1)
    })
end

Input Display Names

Use @key_N@ or @stick_N@ in text to show context-aware button prompts:

-- Shows keyboard key or gamepad button automatically
set_label({
    text = "Press @key_7@ to interact\n@stick_1@ to move"
})

4.6 Audio System

set_audio(config)

Play audio with various options.

-- Play 2D positional sound
set_audio({
    stream_path = "explosion",  -- loads explosion.ogg
    position = explosion_pos,
    is_2d = true,
    volume = 0,  -- in decibels (-80 to 24)
    pitch_scale = 1.0,
    random_pitch = 0.2,  -- randomize pitch by ±20%
    max_distance = 500
})

-- Play global sound
set_audio({
    stream_path = "background_music",
    is_loop = true,
    volume = -10,
    bus = "Music"
})

5. Practical Examples

Example 1: Creating a Projectile (from Hook Up)

-- hook_projectile.lua
linear_damp = 0
gravity_scale = 0.5
lock_rotation = true
network_mode = 2  -- DYNAMIC: synced continuously

-- Owner data (set when spawned)
-- owner_name = "steam_id_of_player"

add_tag(name, "hook")

-- Create visuals and collision
function create_hook_components()
    set_image({
        parent_name = name,
        name = "hook_image",
        image_path = "hook",
        modulate = modulate or Color(0.7, 0.7, 0.9, 1),
        visible = false
    })

    set_collision({
        parent_name = name,
        name = "hook_collision",
        shape = "circle",
        size = 10,
        collision_layer = {3},
        collision_mask = {1, 4}  -- Walls and water
    })
end

create_hook_components()

function activate_hook()
    set_image({
        parent_name = name,
        name = "hook_image",
        visible = true
    })
    set_collision({
        parent_name = name,
        name = "hook_collision",
        disabled = false
    })
end

function deactivate_hook()
    set_value("", name, "linear_velocity", Vector2(0, 0))
    set_image({
        parent_name = name,
        name = "hook_image",
        visible = false
    })
    set_collision({
        parent_name = name,
        name = "hook_collision",
        disabled = true
    })
end

-- Handle collision
function on_body_body_entered(collision_info)
    if not IS_HOST then return end

    local owner_state = get_value("", owner_name, "hook_state")
    if owner_state ~= "FIRING" then return end

    local other_entity = collision_info.body_name
    if has_tag(other_entity, "user") then return end

    -- Attach hook
    freeze_entity(name, true)
    run_network_function(owner_name, "set_hook_state_ALL", {"ATTACHED"})
end

-- Handle area collision (water detection)
function on_body_area_entered(area_name)
    if not IS_HOST then return end

    local owner_state = get_value("", owner_name, "hook_state")
    if owner_state ~= "FIRING" then return end

    if has_tag(area_name, "sea") or has_tag(area_name, "lake") then
        run_network_function(owner_name, "set_hook_state_ALL", {"SEARCHING"})

        -- Determine water type for fishing
        local water_source = has_tag(area_name, "sea") and "sea" or "lake"
        run_function("-fishing_game", "start_searching_for_player",
                     {owner_name, water_source})
    end
end

Example 2: Stat System (from Campfire Survivors)

-- user.lua excerpt
-- Define default stats as global variables (each entity has its own globals)
movement_speed = 40
max_health = 100
current_health = 100
armor = 0
damage = 30
attack_speed = 1.0
projectile_count = 1

-- Note: Each entity has its own separate global scope
-- There is no shared _G table between entities
set_value("", name, "speed", movement_speed)

-- Called by upgrade system when stats change
function update_stats(stats)
    -- Update global variables in this entity's scope
    movement_speed = stats.movement_speed
    max_health = stats.max_health
    current_health = stats.current_health
    armor = stats.armor
    damage = stats.damage
    attack_speed = stats.attack_speed
    projectile_count = stats.projectile_count

    -- Update derived values
    set_value("", name, "speed", movement_speed)

    if IS_LOCAL then
        set_progress_bar({
            name = "_health_progress_bar",
            max_value = max_health,
            value = current_health
        })
    end

    -- Restart shooting timer with new attack speed
    if IS_HOST then
        stop_timer("shoot_timer"..name)
        start_timer({
            entity_name = name,
            timer_id = "shoot_timer"..name,
            wait_time = 1.0 / attack_speed,
            function_name = "shoot_at_nearest_monster"
        })
    end
end

-- Shooting function
function shoot_at_nearest_monster()
    if is_dead then return end

    local nearest = get_nearest_entity_by_tag(name, "monster")
    if not nearest or not nearest.name then return end

    for i = 1, projectile_count do
        local angle_offset = 0
        if projectile_count > 1 then
            angle_offset = (i - 1) * (2 * math.pi / projectile_count)
        end

        spawn_entity_host({
            t = "bullet",
            p = position,
            r = nearest.angle + angle_offset,
            steam_id = name,
            damage = damage,
            speed = projectile_speed,
            penetration = projectile_penetration
        })
    end
end

Example 3: Team System (from Football)

-- user.lua excerpt
team = 0  -- 0=spectator, 1=red, 2=blue

function change_team_ALL(sender_id, _team)
    team = _team

    if team == 0 then  -- Spectator
        if IS_LOCAL then
            set_camera_target("*ball")
        end
        delete_visuals()
        return
    end

    -- Create player visuals
    collision_name = set_collision({
        parent_name = name,
        shape = "circle",
        size = 16
    })

    if IS_LOCAL then
        set_camera_target(name)
    end

    nickname_label_name = set_label({
        parent_name = name,
        text = nickname,
        position = Vector2(-256, 16),
        size = Vector2(512, 16),
        horizontal_alignment = 1
    })

    image_name = set_image({
        parent_name = name,
        image_path = is_avatar_loaded and name or "",
        scale = Vector2(32, 32)
    })

    -- Apply team color
    local color = team == 1 and Color(1, 0, 0, 1) or Color(0, 0, 1, 1)
    set_shader({
        parent_name = name,
        image_name = image_name,
        shader_name = "circle",
        outline_color = color
    })

    reset_position()
end

function reset_position()
    if not IS_HOST then return end

    local spawn_area = team == 1 and "red_spawn_area" or "blue_spawn_area"
    local new_pos = get_random_position_in_polygon(spawn_area)

    change_instantly({
        entity_name = name,
        position = new_pos,
        linear_velocity = Vector2(0, 0),
        rotation = 0,
        angular_velocity = 0
    })
end

6. Best Practices

Important Limitations and Rules

-- BAD: Vector2 as table key
local my_table = {}
my_table[Vector2(10, 20)] = "value"  -- ERROR!

-- GOOD: String as table key
local my_table = {}
my_table["10,20"] = "value"

-- BAD: Returning multiple values
function get_position_and_health()
    return position.x, position.y, health  -- Only first value returned!
end

-- GOOD: Return table with multiple values
function get_position_and_health()
    return {x = position.x, y = position.y, health = health}
end

-- BAD: Local variable with get_value
local secret_value = 100
local val = get_value("", name, "secret_value")  -- Returns nil!

-- GOOD: Global variable with get_value
secret_value = 100
local val = get_value("", name, "secret_value")  -- Works!

Performance Optimization

• Minimize network calls: Batch updates instead of sending individual values
• Use local entities for effects: Particles and UI don't need to be synced
• Cache frequently accessed values: Store entity variables locally instead of calling get_value repeatedly
• Use appropriate network modes: Static entities don't need continuous sync

-- BAD: Repeated get_value calls
function _process(delta, inputs)
    local target_pos = get_value("", target_name, "position")
    local target_health = get_value("", target_name, "health")
    local target_team = get_value("", target_name, "team")
    -- Expensive repeated lookups every frame!
end

-- GOOD: Cache values when they change
target_pos_cache = Vector2(0, 0)
target_health_cache = 100
target_team_cache = 1

function on_target_updated_ALL(sender_id, pos, health, team)
    target_pos_cache = pos
    target_health_cache = health
    target_team_cache = team
end

function _process(delta, inputs)
    -- Use cached values - much faster!
    local distance = (target_pos_cache - position).length()
end

-- BAD: Repeated network calls
for i = 1, 10 do
    run_network_function("user", "update_value_ALL", {i})
end

-- GOOD: Single batched call
local batch = {}
for i = 1, 10 do
    table.insert(batch, i)
end
run_network_function("user", "update_batch_ALL", {batch})

Entity Lifecycle

-- Proper cleanup on disconnect
function _on_user_disconnected(steam_id, nickname)
    if steam_id == name then
        -- Clean up all associated entities
        destroy("", hook_entity_name)
        destroy("", cursor_name)
        destroy_line(hook_line_name)
        stop_timer("shoot_timer"..name)
    end
end

Error Handling

-- Always validate entity existence
local target_pos = get_value("", target_name, "position")
if not target_pos then
    print("Warning: Target entity not found: " .. target_name)
    return
end

-- Check for nil values
local nearest = get_nearest_entity_by_tag(name, "enemy")
if nearest and nearest.name and nearest.name ~= "" then
    -- Safe to use nearest.name
end

Debugging

-- Use print for debugging (shows in console)
print("DEBUG: Player fired weapon at position:", position.x, position.y)

-- Use chat for in-game debugging
if IS_HOST then
    add_to_chat("[DEBUG] Score updated: " .. score, false)
end

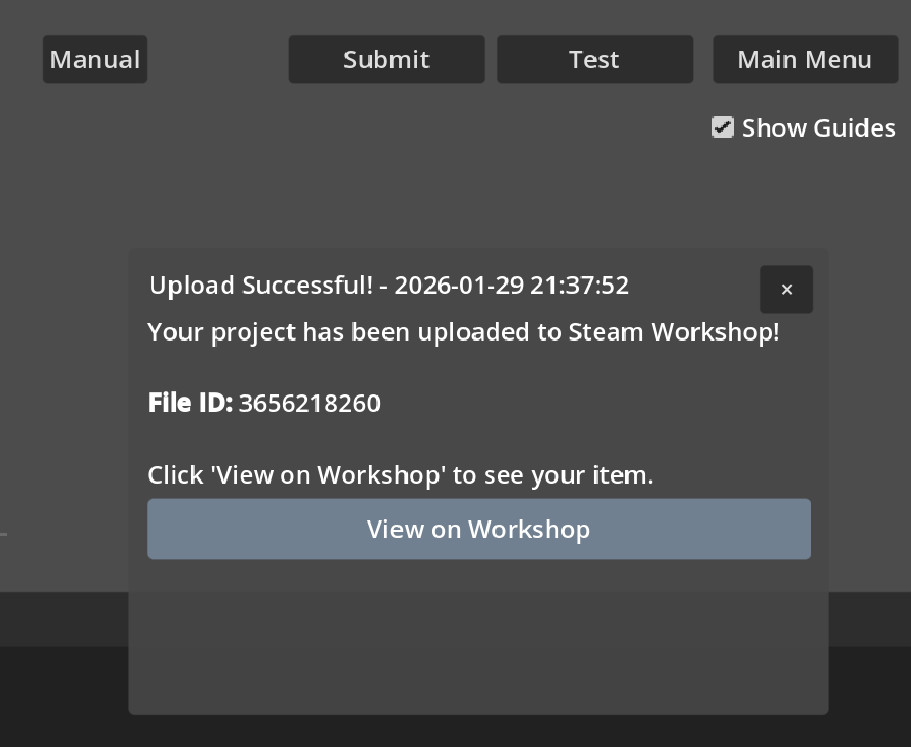

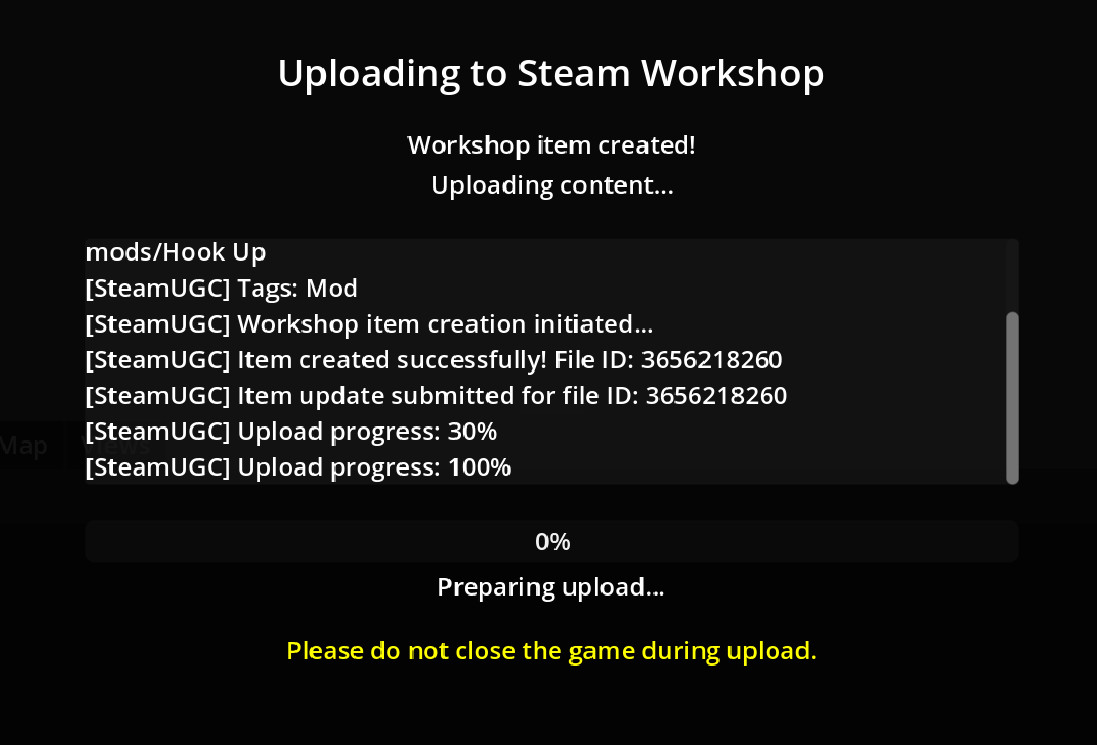

7. Uploading To Steam Workshop

Once your mod is ready, you can share it with the community by uploading it to the Steam Workshop. The entire process is handled directly within the cenker's mod editor.

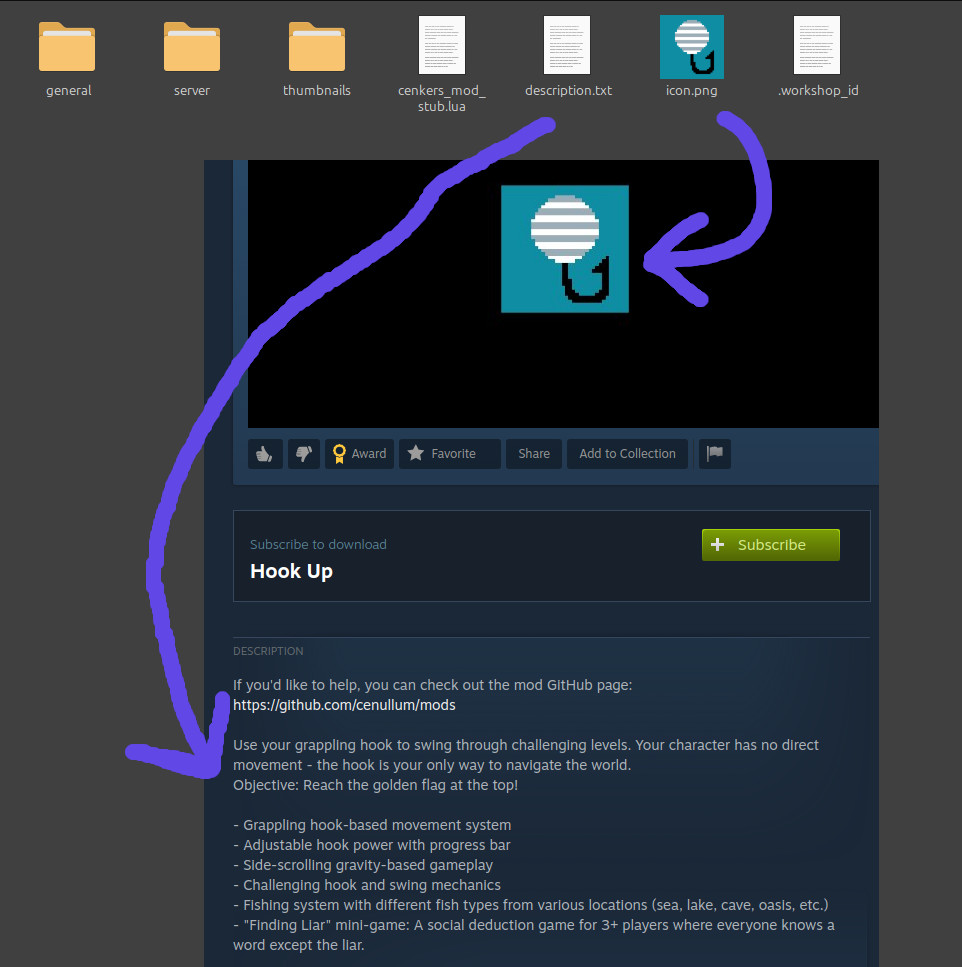

Setting Up Description and Icon

The Workshop item automatically uses specific files from your mod directory:

• icon.png: This will be the preview image seen on the Workshop.
• description.txt: The contents of this file will become the mod's Workshop description.

Your local files are mapped to the Workshop UI automatically.

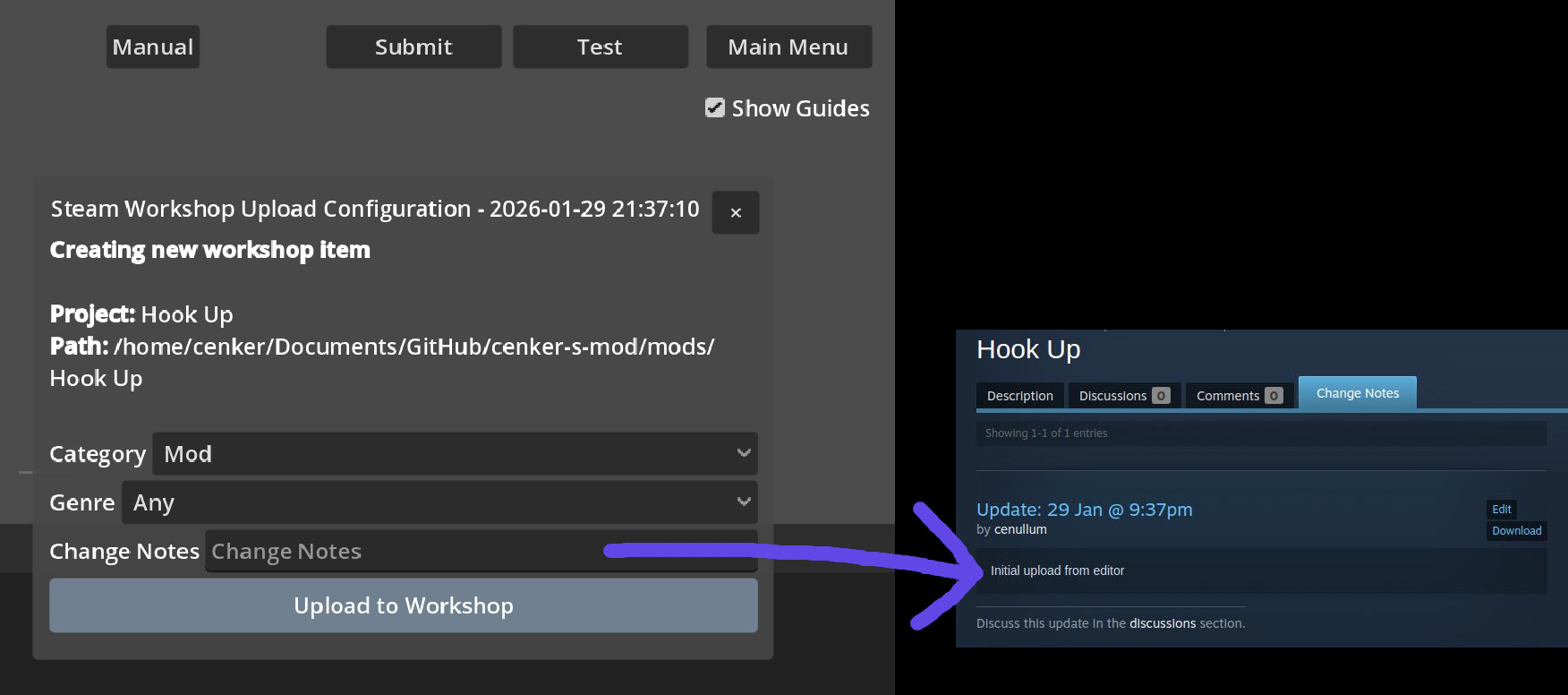

Categories and Genres

When you click Submit, you'll need to configure your mod's categorization:

• Category: Choose between Mod (standalone experience) or Addon (extra content for other mods).
• Genre/Type:
  • For Mods: Select the closest genre (Action, Strategy, Crafting, Sports, etc.).
  • For Addons: Select the addon type. Addons are recommended to be compatible with other mods (e.g., new maps, moderation tools, or helper utilities).

The Upload Process

During the upload, the game will communicate with Steam servers. A progress window will appear.

Finalizing

Once successful, you'll receive a confirmation with your File ID. You can click "View on Workshop" to see your live project and manage it through the Steam interface.
